Double Color Pneumatic Pad Printing Machines

Pneumatic Pad Printing Machines Double Color Pneumatic Pad Printing Machines

Euro-85/210dcsu

Enquire Now
Model Euro-85/210dcsu
No. of Colors 2
Doctoring Cup Dia [mm] 90
Print Speed [Max./Hrs] 1000
Cliche/Plate Size [mm] 100 x 210
Print Image Size [⌀ mm] 85
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 6-8
Air Consumption [Lit/min.] 110
Power Supply 230 VAC/50Hz.
Dimensions (Approx)[mm] Length - 670
Width - 640
Height - 1300
Weight kgs (Approx)[Kgs] 118

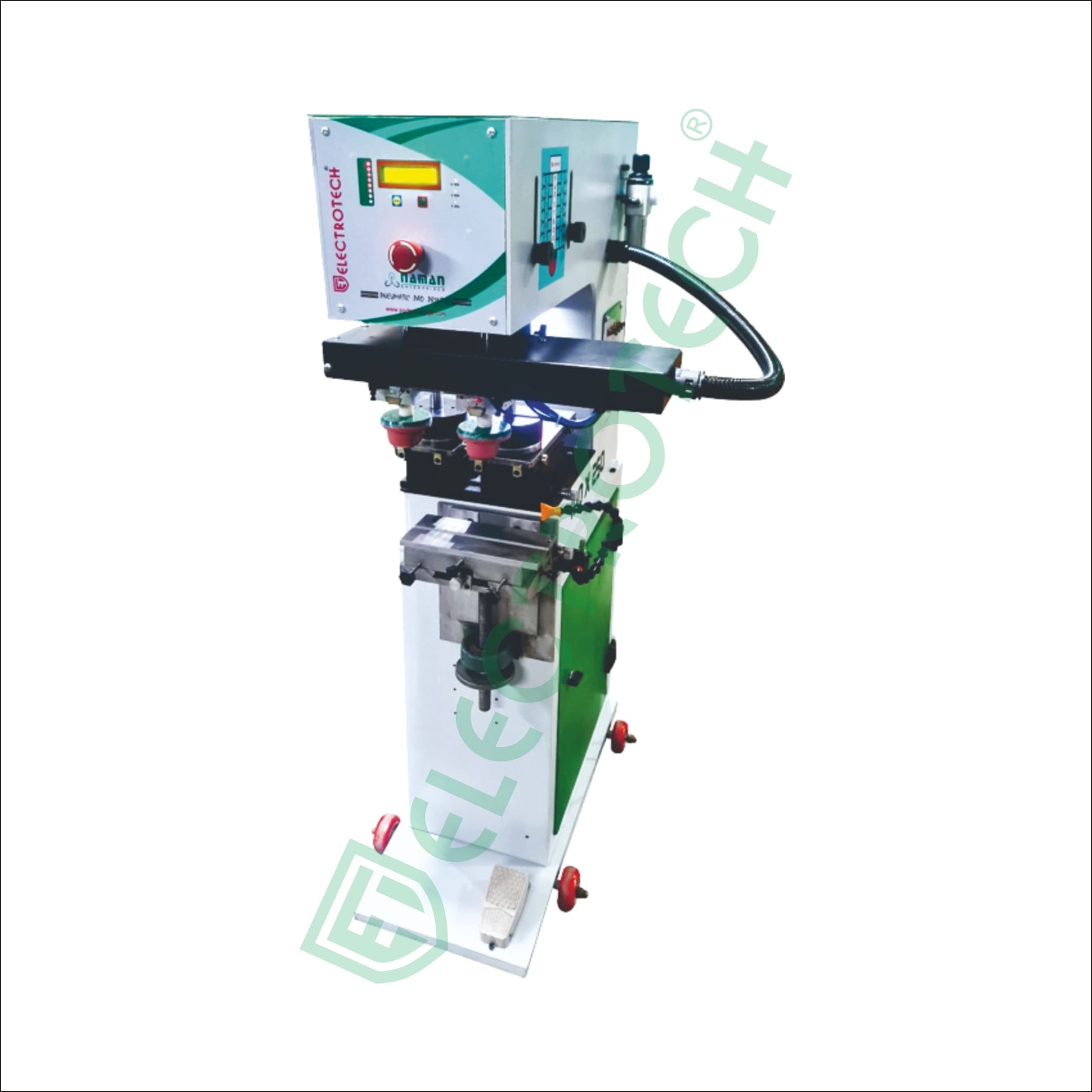

Euro-85/250dcsu

Enquire Now
Model Euro-85/250dcsu
No. of Colors 2
Doctoring Cup Dia [mm] 90
Print Speed [Max./Hrs] 900
Cliche/Plate Size [mm] 100x250
Print Image Size [ mm] 85
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 6-8
Air Consumption [Lit/min.] 120
Power Supply 230 VAC/50Hz
Dimensions (Approx)[mm] Length - 820
Width - 550
Height - 1350
Weight kgs (Approx)[Kgs] 129

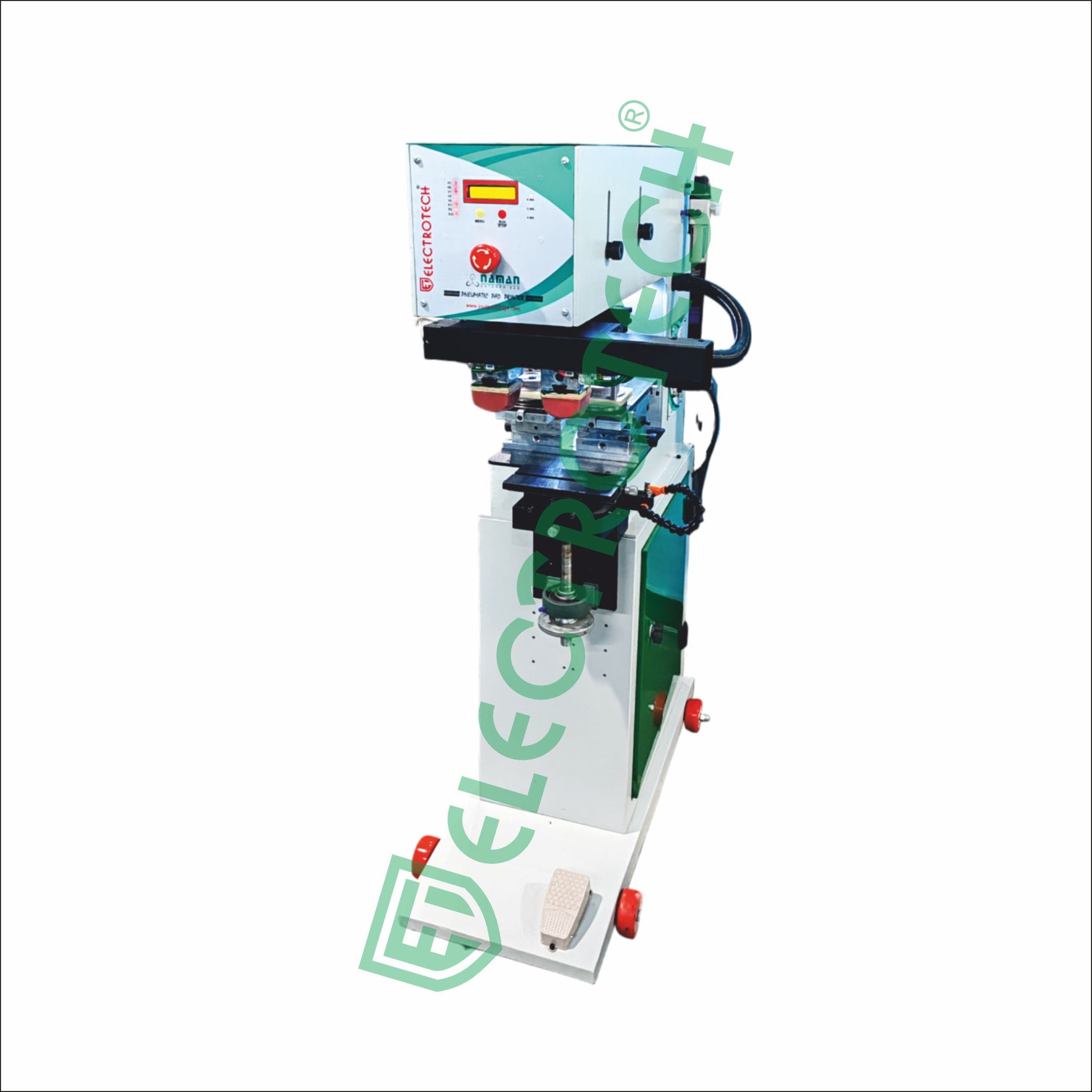

Euro-85/300dcsu

Enquire Now
Model Euro-85/300dcsu
No. of Colors 2
Doctoring Cup Dia [mm] 90
Print Speed [Max./Hrs] 800
Cliche/Plate Size [mm] 100x300
Print Image Size [⌀ mm] 85
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 6-8
Air Consumption [Lit/min.] 130
Power Supply 230 VAC/50Hz
Dimensions (Approx)[mm] Length - 910
Width - 580
Height - 1350
Weight kgs (Approx)[Kgs] 144

Euro-175dcsu

Enquire Now
Model Euro-175dcsu
No. of Colors 2
Doctoring Cup Dia [mm] 175
Print Speed [Max./Hrs] 300
Cliche/Plate Size [mm] 500x500
Print Image Size [⌀ mm] 123 x 161 or ⌀ 175
Product Height [mm] 600
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 8-10
Air Consumption [Lit/min.] 180
Power Supply 230 VAC/50Hz
Dimensions (Approx)[mm] Length - 1250
Width - 1000
Height - 1600
Weight kgs (Approx)[Kgs] 325

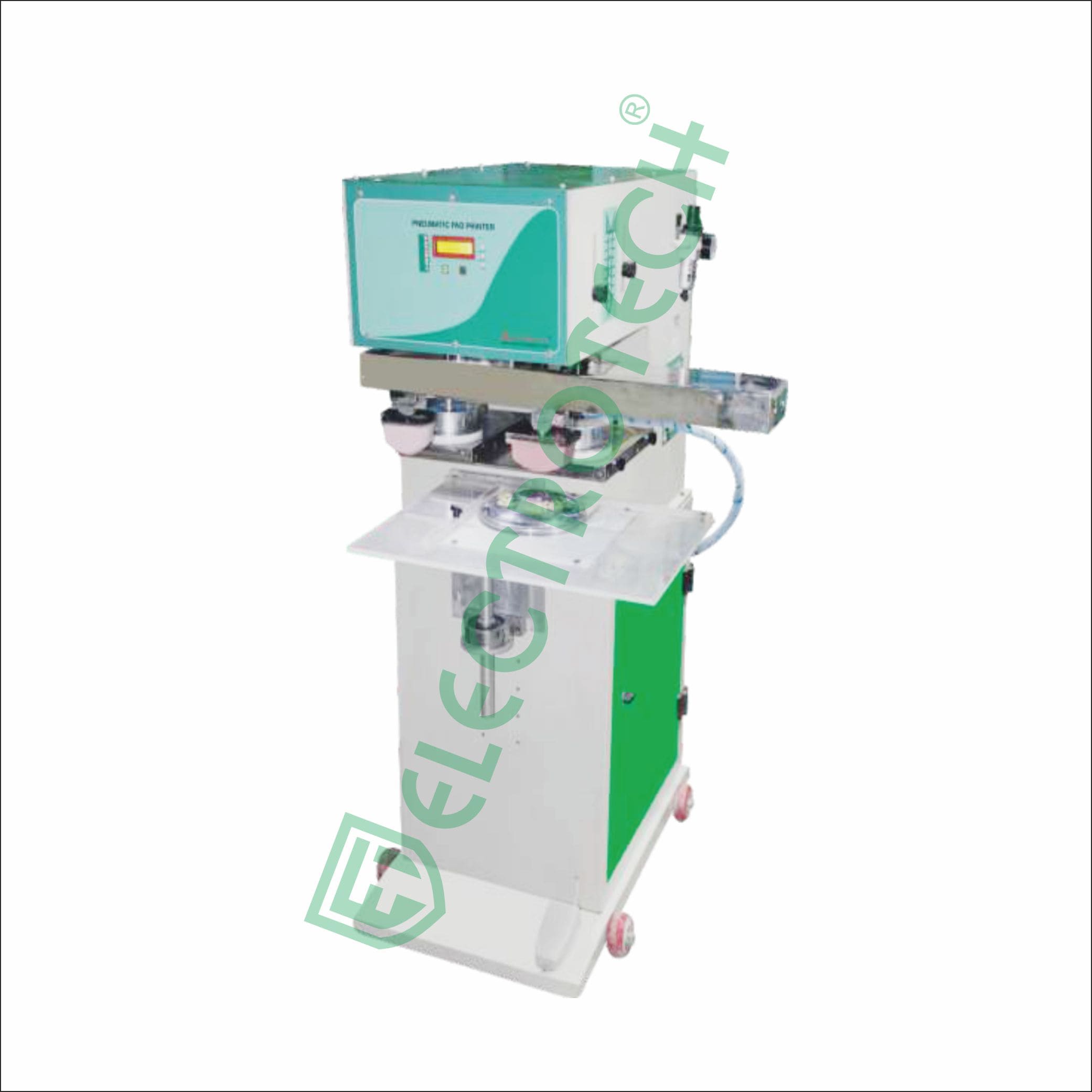

Euro-120dcsu

Enquire Now
Model Euro-120dcsu
No. of Colors 2
Doctoring Cup Dia [mm] 125
Print Speed [Max./Hrs] 600
Cliche/Plate Size [mm] 150x300
Print Image Size [⌀ mm] 120
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 8-10
Air Consumption [Lit/min.] 160
Power Supply 230 VAC/50Hz
Dimensions (Approx)[mm] Length - 800
Width - 675
Height - 1300
Weight kgs (Approx)[Kgs] 130

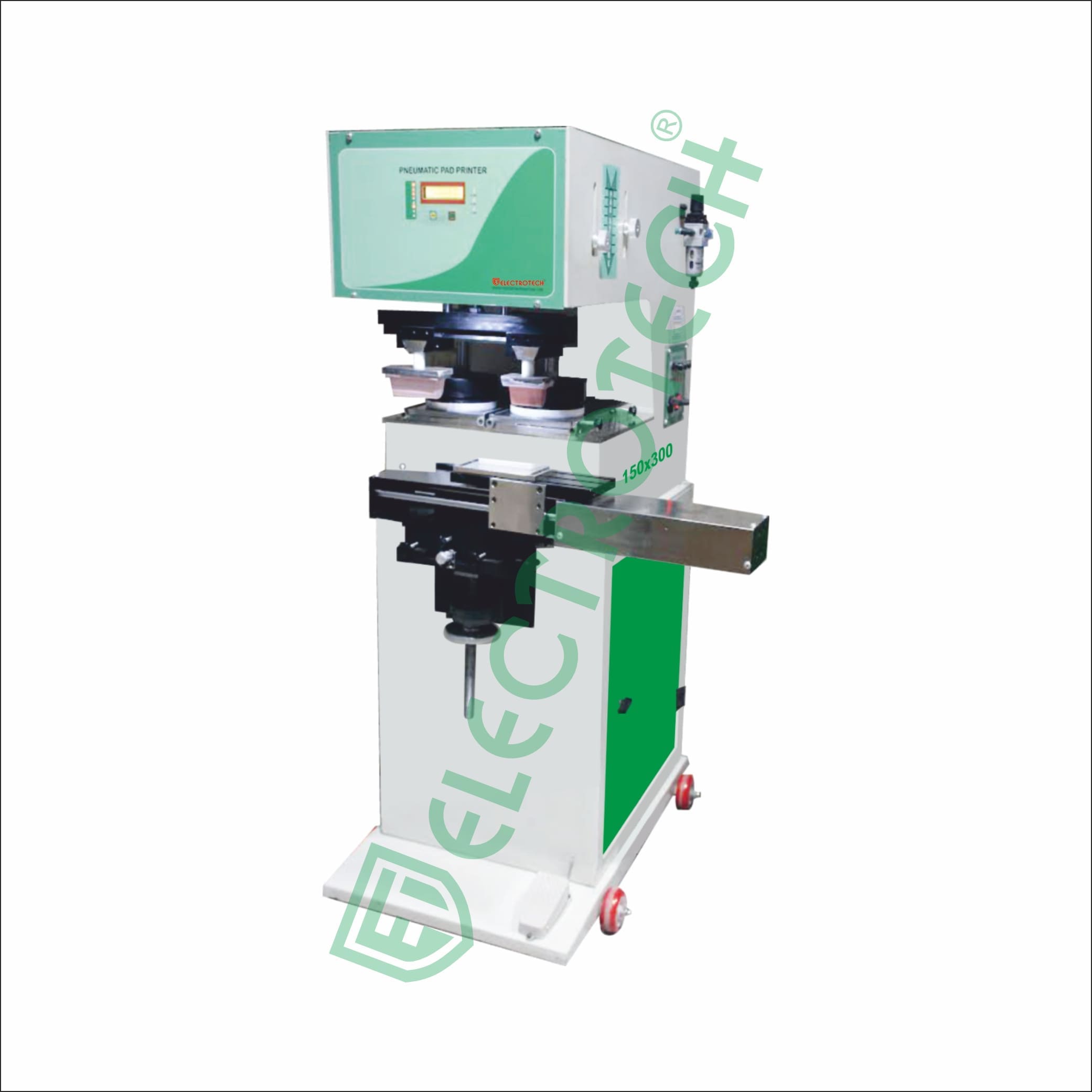

Euro-120dcs

Enquire Now
Model Euro-120dcs
No. of Colors 2
Doctoring Cup Dia [mm] 125
Print Speed [Max./Hrs] 600
Cliche/Plate Size [mm] 150x300
Print Image Size [⌀ mm] 120
Product Height [mm] 400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 8-10
Air Consumption [Lit/min.] 160
Power Supply 230 VAC/50Hz
Dimensions (Approx)[mm] Length - 800
Width - 820
Height - 1300
Weight kgs (Approx)[Kgs] 160

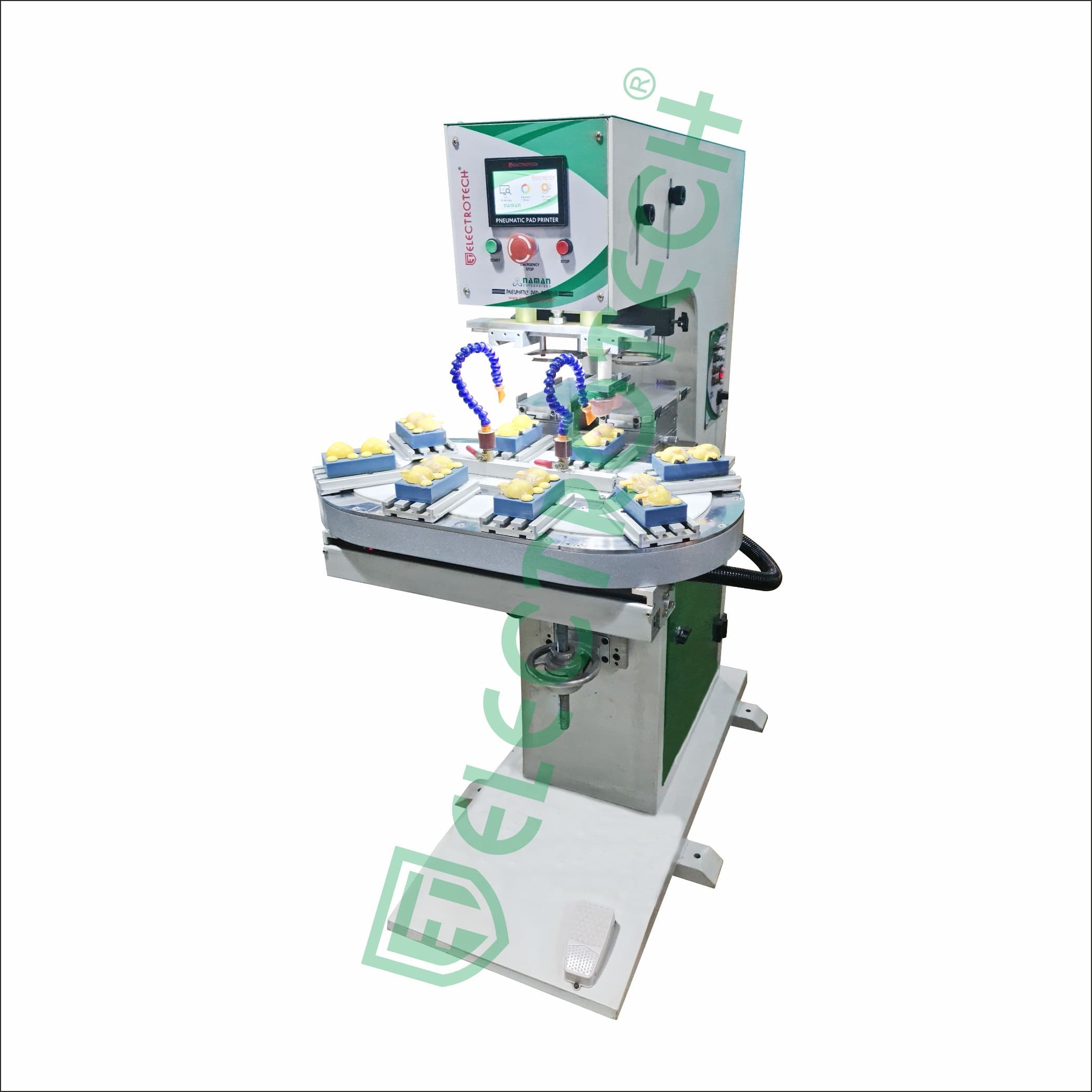

Euro-85/250dcc

Enquire Now
Model Euro-85/250dcc
No. of Colors 2
Doctoring Cup Dia [mm] 90
Print Speed [Max./Hrs] 1000
Cliche/Plate Size [mm] 100x250
Print Image Size [⌀ mm] 85
Product Height [mm] 200
Power Consumption [W] 50
Control System PLC + HMI
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure[Bar] 6-8
Air Consumption [Lit/min.] 210
Power Supply 230 VAC/50Hz
Dimensions (Approx)[mm] Length - 930
Width - 670
Height - 1420
Weight kgs (Approx)[Kgs] 176
